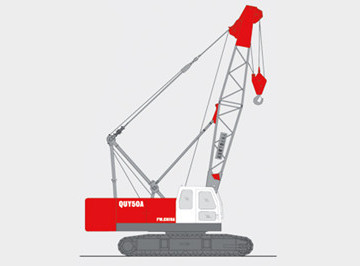

50 ton crawler crane QUY50A

50 ton crawler crane QUY50A

QINGONG hydraulic crawler crane has 35 ton, 50 ton, 55 ton, 70 ton, 80 ton, 90 ton, 100 ton, 120 ton,150 ton, 250 ton, 400 ton and 500 ton max. loading capacity.

△ QUY50 as the first full hydraulic crawler crane of China, after continuous improvements, has gained unsurpassable maturity;

△ Max. Market share among the products of the equal lifting capacity;

Product Parameters

QUY 50A Technical Parameters

Descriptions

 Unit

 Data

Engine



D6114ZG2B,

Engine output and rotate speed

kW/r/Min

128/2000

Lifting torque

t.m

180

Max. lifting capacity

t

50

Boom length

m

13-52

Length for fixed jib

m

9.15-15.25

Lifting capacity of jib

t

5

Hoisting

m/min

70;35

Boom derricking up and down

m/min

45

Max. slewing speed

r/min

2.7

Travel

km/h

1.1

Gradeability

%

40

Groundpressure

Mpa

0.069

Weight of the crane(basic boom and 50t hook)

t

50

Overall dimensions

mm

6745×3300×3080
