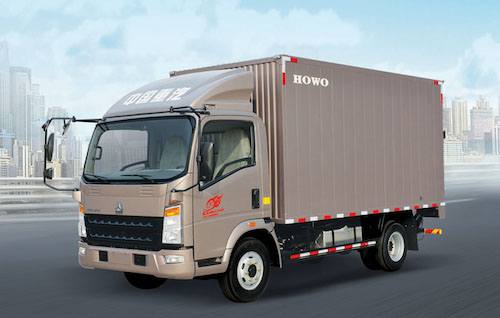

Light Van Truck

Light Van Truck

Mobile : +86 182 6413 8382 WhatsApp:+86 136 5863 2022 Email: qincl@qingong.cn

Ton

2

3

5

Type

ZZ1047E281AD1Y45

ZZ1047F341BD1Y45

ZZ1067F341BD165

Company inner
 type

/K7B-0494K17D2035G

/K7B-0494K17D2035G

/M7B-4102K19D2442G

Parameters

Overall dimension (L*W*Hmm)

5480*2020*2450(mm)

5995*2250*2450(mm)

6050*2250*2450(mm)

(L*W*H mm)

3650*1900*400(mm)

4200*2050*400(mm)

4200*2050*400(mm)

Drive mode

4*2

4*2

4*2

Wheel base (mm)

2800

3360

3360

Wheel tread (Front/
Rear mm)

1625/1525

1625/1525

1605/1545

Min.ground clearance
(mm)

210mm

210mm

210mm

Front overhang/Rear
overhang(mm)

1160/1520

1160/1475

1160/1530

Approach angle(°)/Departure angle(°)

18/18(°)

18/18(°)

18/18(°)

Max.speed(km/h)

95

95

95

Max.grade ability(%)

30

30

30

Fuel consumption
(L/100KM)

11.8

11.8

12.4

Min.turning radius(m)

6.05

7

7

Kurb weight (kg)

2565

3050

3450

Rated load(kg)

2000

3000

5000

Capacity of cab

2

3

3

Gross weight (kg)

4695

6245

8645

Cab

width*length

1760*1656

1880*1656

1880*1656

Engine

Model

ISF2.8s4129p

ISF2.8s4129p

ISF3.8s4141

Type

Diesel,four-cylinder,
common rail/SCR

Diesel,four-cylinder,
common rail/SCR

Diesel,four-cylinder,
common rail/SCR

Displacement(L)

2.8L

2.8L

3.8L

Power/rated speed
(kw/rpm)

129(96kw)/3200

129(96kw)/3200

141(105kw)/2600

Maximum torque/rotate
speed(N.m/rpm)

310/1600~2700

310/1600~2700

450/1200~2200

Gear box

Type

WLY,5 forward & 1
reverse

WLY,5 forward & 1
reverse

WLY,6 forward & 1
reverse

WLY5T100

WLY5T100

WLY6T51

speed ratio

5.057 2.609 1.565 1.00 07.764 4.575®

5.057 2.609 1.565 1.00 07.764 4.575®

5.51 3.417 2.115 1.381 1.00 0.795 5.128®

Frame

height(mm)

170

170

195

Front axle



VGD20QB

VGD20QB

VGD24QB

Rear axle



HGC35QB

HGC35QB

HGC42QB

Suspension



8/9+6

11/9+7

11/9+7

Braking system

Drive brake

oil brake

air brake

air brake

Parking brake

general

general

Cutting-off air brake

Auxiliary brake

NO

NO

Exhaust brake(option)

Basic configuration

Radio,sun shield,clutch booster,power steering,adjustable steering wheel,heater,electric control flameout,electrical heating,left hand,metallic paint of cab(except white)
